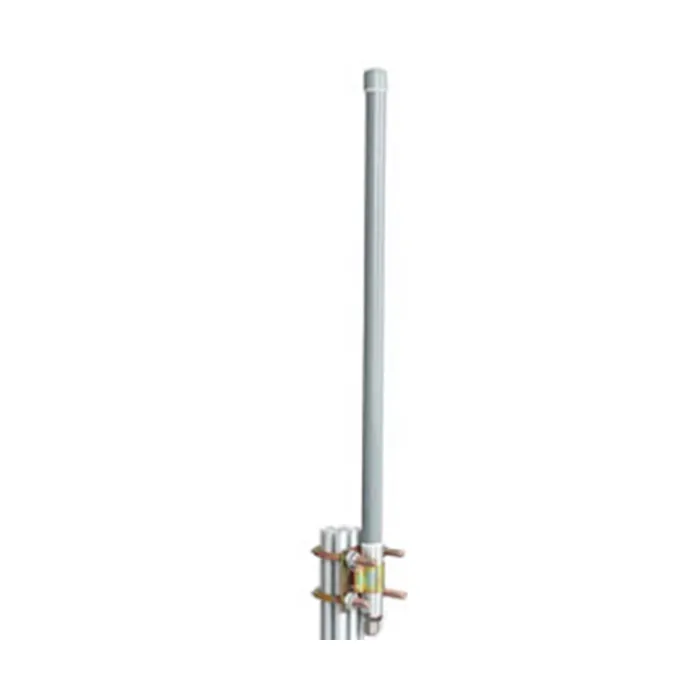

5.8GHz 8dBi Omni-Directional Antenna
Model: QJ-5800-8
Freq: 5500-5850 MHz
Gain: 8.0 dBi
VSWR: ≤1.5
Polarization: Vertical

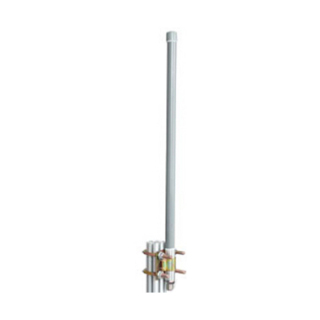

5.8GHz 8dBi Omni-Directional Antenna
Electrical Specifications | |
Frequency Range(MHz) | 5500-5850 |
Gain(dBi) | 8.0 |
VSWR | ≤1.5 |
Polarization | Vertical |
Horizontal Beam width | 360° |
Vertical Beam width | 17° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N-Female |
Dimensions(mm) | Ø20×600 |
Weight(kg) | 0.26 |
Reflector Material | Copper |
Radome Material | Fiberglass |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø38-Ø52 |
 |  |
| Horizontal | Vertical |
