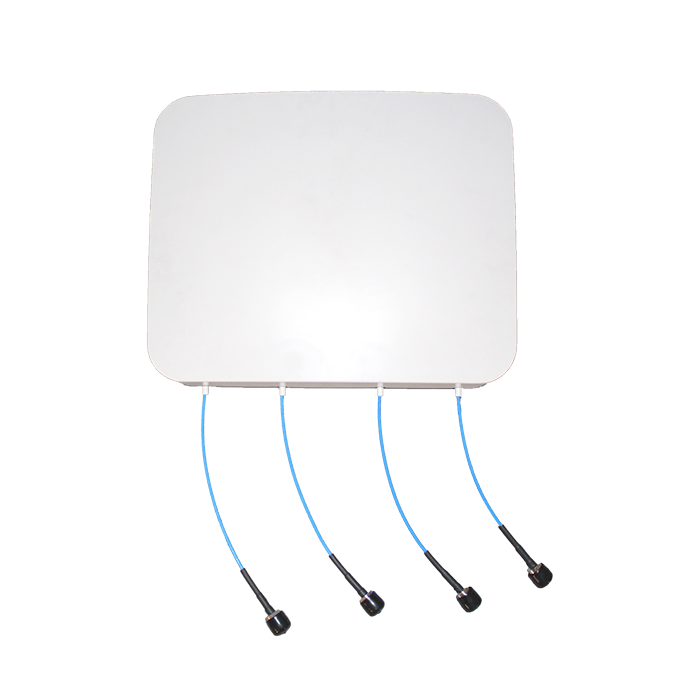

600-6000MHz 4-Port Outdoor Directional Pole Mount Panel Antennas

Model: DB-600-6000XX-8-65A-OD-LP
Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz, 4000-6000MHz
Gain: 4.0dBi, 5.5dBi, 8.5dBi, 7.0dBi, 6.0dBi
VSWR: ≤2.5, ≤2.0, ≤2.0, ≤2.0, ≤2.0
Polarization: Horizontal + Vertical

Send Inquiry Now

Electrical Specifications
Frequency Range(MHz)	600-698	617-698	698-960	1710-2700	3300-4000	4000-6000
Gain(dBi)	4.0	5.5	5.5	8.5	7.0	6.0
VSWR	≤2.5	≤2.5	≤2.0	≤2.0	≤2.0	≤2.0
Polarization	Horizontal + Vertical
Isolation(dB)	≥10	≥12	≥12	≥20	≥24	≥24
Front to Back Ratio(dB)	≥6	≥7	≥7	≥13	≥10	≥10
PIM, 3rd Order, 2x20W(dBc)	≤-140		≤-140 \| -150 \| -153
Horizontal Beam width	108-80°	130-85°	130-85°	95-58°	65-33°	52-28°
Vertical Beam width	98-75°	108-78°	108-78°	83-45°	90-25°	45-22°
Input Impedance	50 Ω
Max. Input Power	50 W
Mechanical Specifications
Connector	4xN \| 4.3-10 Female
Dimensions(mm)	393x317x80
Weight(kg)	1.5
Radome Material	ABS
Operating Temperature	-40°C to +65°C
Mounting	Wall Mount \| Pole Mount
