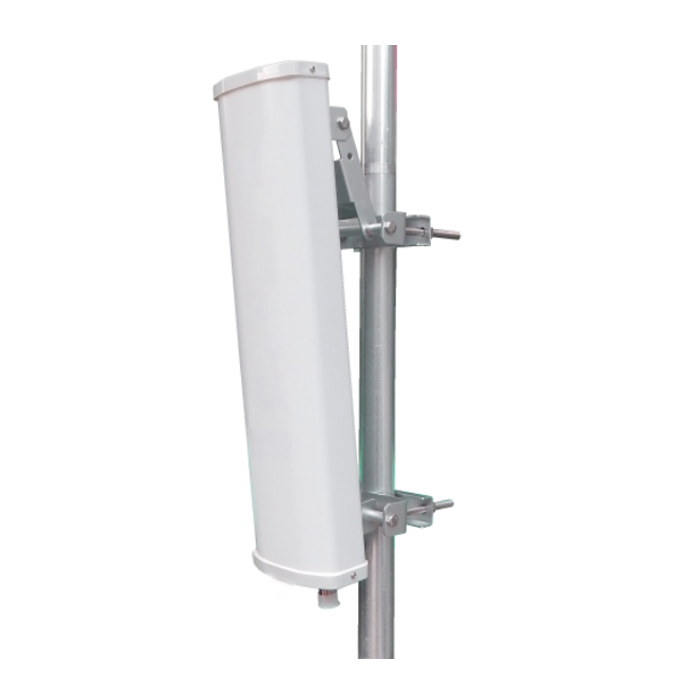

2.4GHz 17dBi 90° Directional Sector Antenna
Model: DB-2400-17-90
Freq: 2400-2500 MHz
Gain: 17.0dBi
VSWR: ≤1.5
Polarization: Vertical
2.4GHz 17dBi 90° Directional Sector Antenna
Electrical Specifications | |
Frequency Range(MHz) | 2400-2500 |
Gain(dBi) | 17.0 |
VSWR | ≤1.5 |
Polarization | Vertical |
Front to Back Ratio(dB) | ≥25 |
Horizontal Beam width | 90° |
Vertical Beam width | 7° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N-Female |
Dimensions(mm) | 970×180×90 |
Weight(kg) | 4.0 |
Reflector Material | Aluminum |
Radome Material | UV-PVC |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø38-Ø52 |
 |  |
| Horizontal | Vertical |
