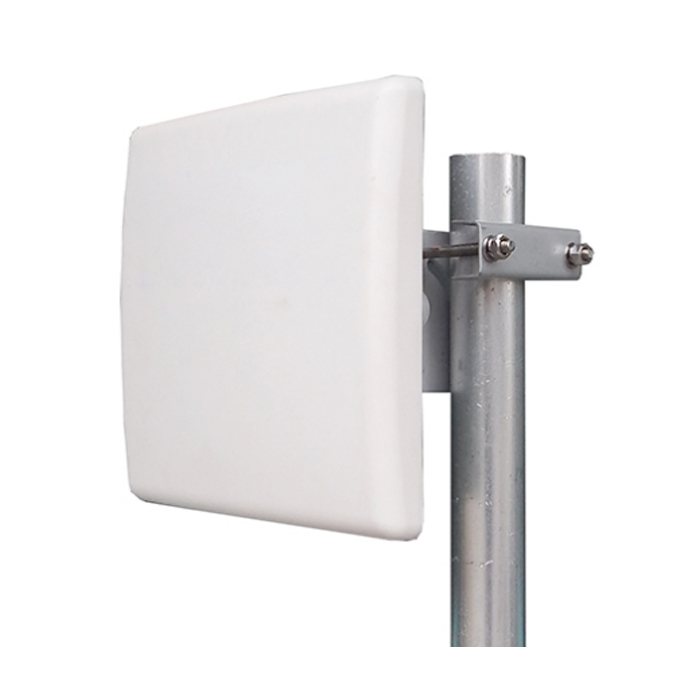

2.4GHz 5.8GHz 9dBi Dual-band MIMO Panel Antenna
Model: DB-2458S-9-65
Freq: 2400-2500 MHz, 5150-5850 MHz
Gain: 9.0 dBi, 9.0 dBi
VSWR: ≤1.5, ≤2.0
Polarization: Horizontal + Vertical
Electrical Specifications | ||
Frequency Range(MHz) | 2400-2500 | 5150-5850 |
Gain(dBi) | 9.0 | 9.0 |
VSWR | ≤1.5 | ≤2.0 |
Polarization | Horizontal +Vertical | Horizontal +Vertical |
Front to Back Ratio(dB) | ≥20 | ≥23 |
Horizontal Beam width | 65° | 60° |
Vertical Beam width | 60° | 55° |
Input Impedance | 50 Ω | |
Max. Input Power | 100 W | |
Lightning Protection | DC Ground | |
Mechanical Specifications | ||
Connector | 4×N-Female | |
Dimensions(mm) | 190×190×30 | |
Weight(kg) | 0.65 kg | |
Reflector Material | Aluminum | |
Radome Material | ABS | |
Rated Wind Velocity | 210 km/h | |
Operating Temperature | -40°C to +65 °C | |
Mounting Pole(mm) | Ø38-Ø52 | |
Horizontal |  |  |
Vertical |  |  |
| 2450MHz | 5500MHz |
