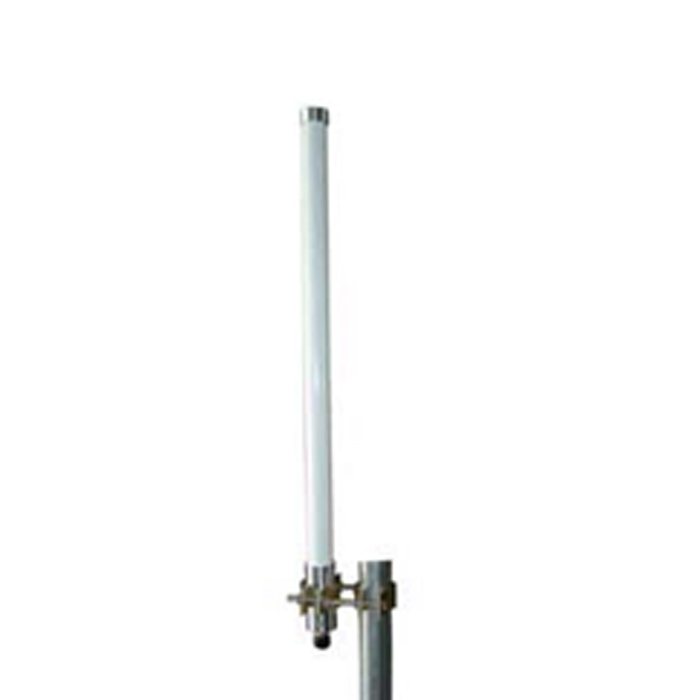

3.5GHz 12dBi Outdoor WiMax Omni Fiberglass Antennas
Model: QJ-3500-12
Freq: 3400-3600 MHz
Gain: 12.0 dBi
VSWR: ≤1.5
Polarization: Vertical
3.5GHz 12dBi Outdoor WiMax Omni Fiberglass Antennas
Electrical Specifications | |
Frequency Range(MHz) | 3400-3600 |
Gain(dBi) | 12.0 |
VSWR | ≤1.5 |
Polarization | Vertical |
Horizontal Beam width | 360° |
Vertical Beam width | 7° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | N-Female |
Dimensions(mm) | Ø20×790 |
Weight(kg) | 0.9 |
Reflector Material | Copper |
Radome Material | UV-PVC |
Radome Color | White |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø38-Ø52 |
 |  |
| Horizontal | Vertical |
