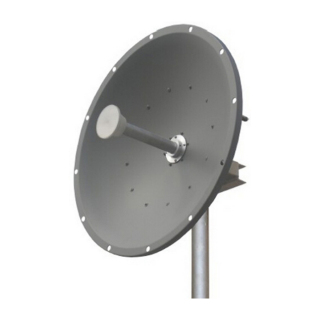

5.8GHz 28dBi MIMO Parabolic Dish Antenna
Model: DP-5800S-28-0.66
Freq: 4900-5900 MHz
Gain: 28.0 dBi
VSWR: ≤2.0
Polarization: ±90°
5.8GHz 28dBi MIMO Parabolic Dish Antenna
Electrical Specifications | |
Frequency Range(MHz) | 4900-5900 |
Gain(dBi) | 28.0 |
VSWR | ≤2.0 |
Polarization | ±90° |
Front to Back Ratio | ≥35 |
Horizontal Beam width | 7° |
Vertical Beam width | 6° |
Input Impedance | 50 Ω |
Max. Input Power | 100 W |
Lightning Protection | DC Ground |
Mechanical Specifications | |
Connector | 2xN-Female |
Dimensions(mm) | Ø600 |
Weight(kg) | 5.8 |
Reflector Material | Aluminum |
Rated Wind Velocity | 210 km/h |
Operating Temperature | -40°C to +65 °C |
Mounting Pole(mm) | Ø30-Ø70 |
 |  |
| Horizontal | Vertical |
