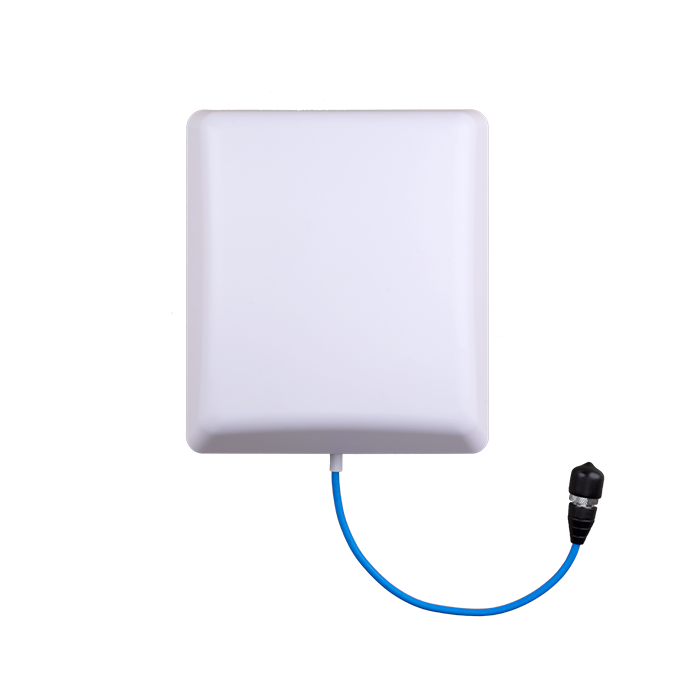

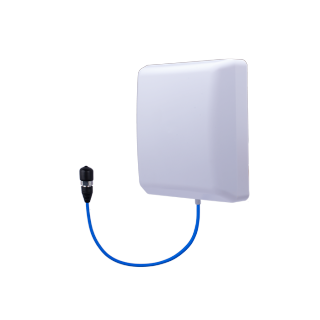

600-4000MHz SISO Indoor Directional Wall Mount Panel Antennas

Model: DB-600-4000-7-65A-ID-LP
Freq: 600-698MHz, 698-960MHz, 1710-2170MHz. 3300-4000MHz
Gain: 5.0dBi, 6.5dBi, 9.0dBi, 7.0dBi
VSWR: ≤2.3, ≤2.0, ≤1.8, ≤1.8
Polarization: Vertical

Send Inquiry Now

Electrical Specifications
Frequency Range(MHz)	600-698	617-698	698-960	1710-2700	3300-4000
Gain(dBi)	5.0	5.0	6.5	9.0	7.0
VSWR	≤2.3	≤2.3	≤2.0	≤1.8	≤1.8
Polarization	Vertical
PIM, 3rd Order, 2x20W(dBc)	≤-140 \| -150 \| -153
Front to Back Ratio(dB), dB	≥8	≥9	≥10	≥15	≥11
Horizontal Beam width	95°	100°	85°	65°	50°
Vertical Beam width	95°	90°	82°	60°	45°
Input Impedance	50 Ω
Max. Input Power	50 W
Mechanical Specifications
Connector	N \| 4.3-10 Female
Dimensions(mm)	180×158×60
Weight(kg)	0.4
Radome Material	ABS
Operating Temperature	-40°C to +65 °C
Mounting	Wall Mount \| Pole Mount
