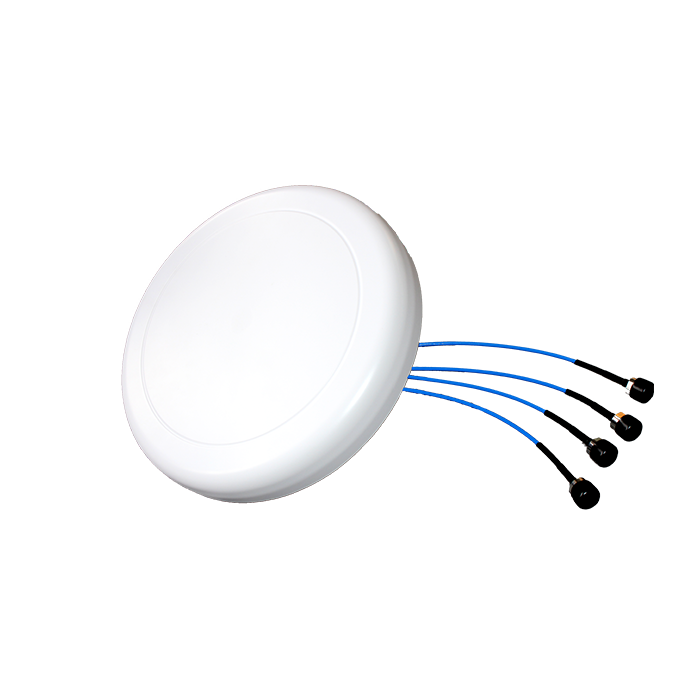

698-2700MHz 4-Port Indoor Omni Ceiling Mount Antennas
Model: QX-698-2700HH-3A-LP
Freq: 698-960MHz, 1710-2700MHz
Gain: 3.8dBi, 4.0dBi
VSWR: ≤2.0, ≤2.0
Polarization: Linear H/V for each Radiator
Electrical Specifications | |||||
Frequency Range(MHz) | 698-960 | 1710-2700 | |||
Gain(dBi) | 3.8 | 4.0 | |||
VSWR | ≤2.0 | ≤2.0 | |||
Polarization | Linear H/V for each Radiator | ||||
Isolation(dB) | >15 | >20 | |||
PIM, 3rd Order, 2x20W(dBc) | ≤-140 | -150 | -153 | ||||
Horizontal Beamwidth | 360° | ||||
Vertical Beamwidth | 90° | 46° | |||
Input Impedance | 50 Ω | ||||
Max.Power | 50 W | ||||
Mechanical Specifications | |||||
Connector | 4xN | 4.3-10 Female | ||||
Dimensions(mm) | Ø320x50 | ||||
Weight(kg) | 1.0 | ||||
Radome Material | ABS | ||||
Operating Temperature | -40°C to +65 | ||||
Mounting | Ceiling Mount | ||||
Horizontal |  |  |
Vertical |  |  |
| 700-960MHz | 1710-2690MHz |
